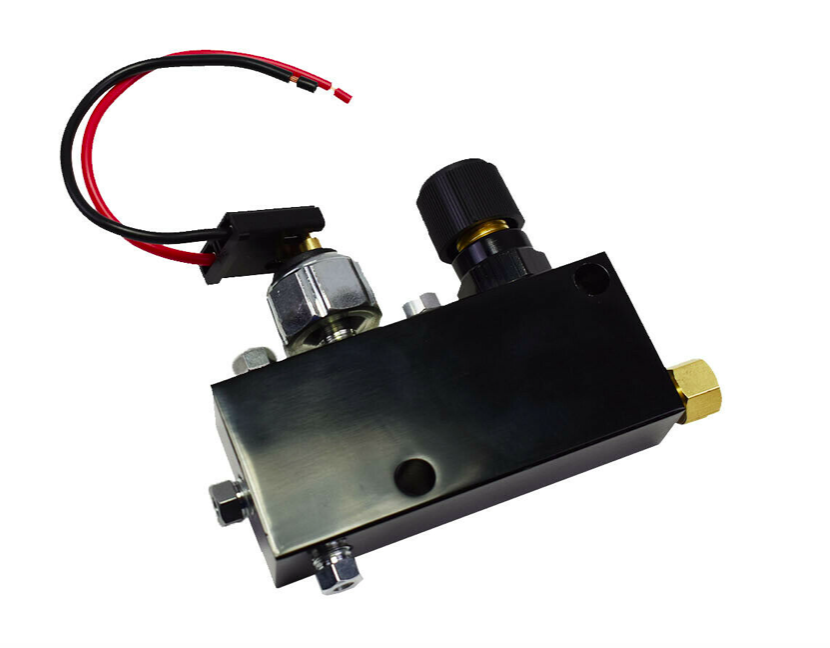

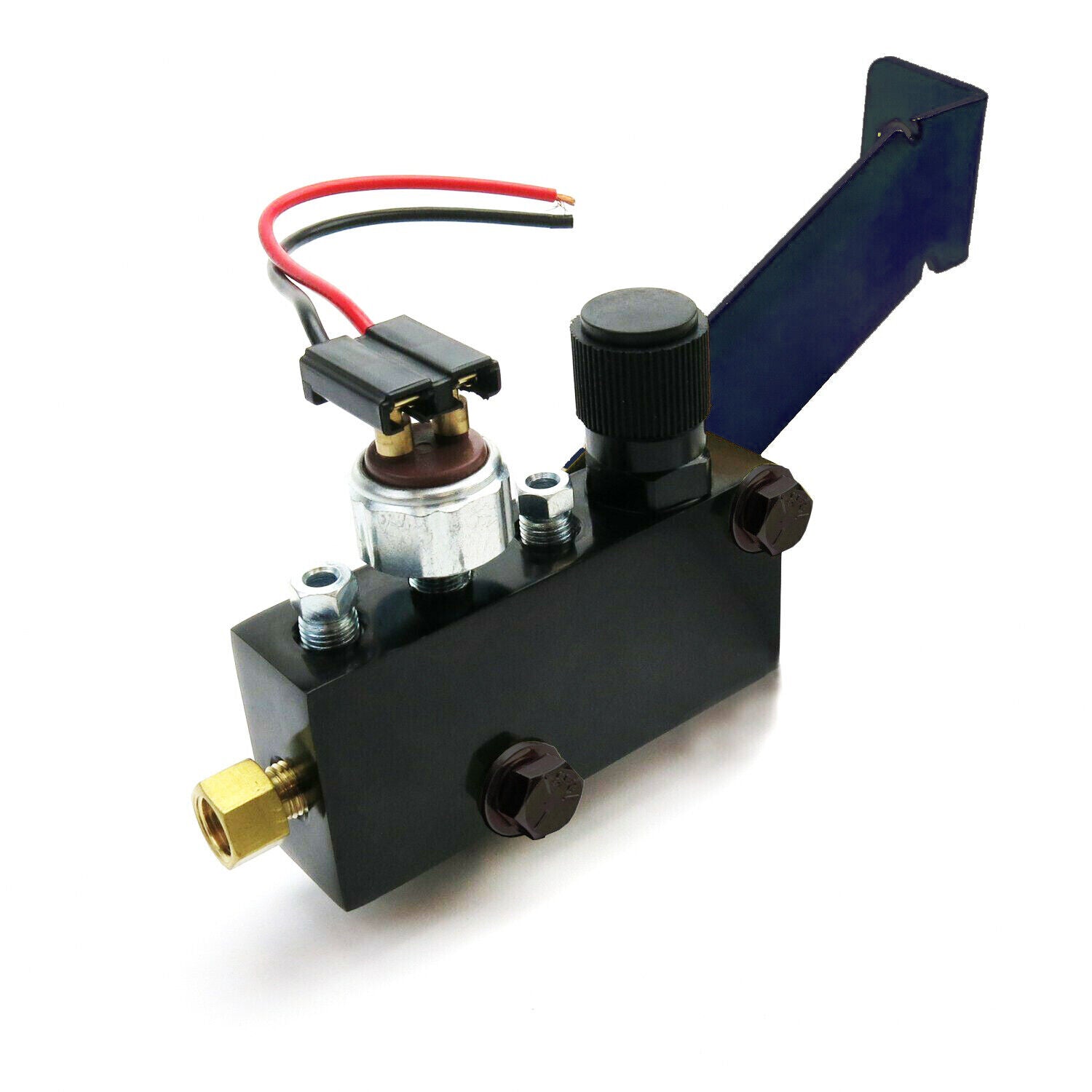

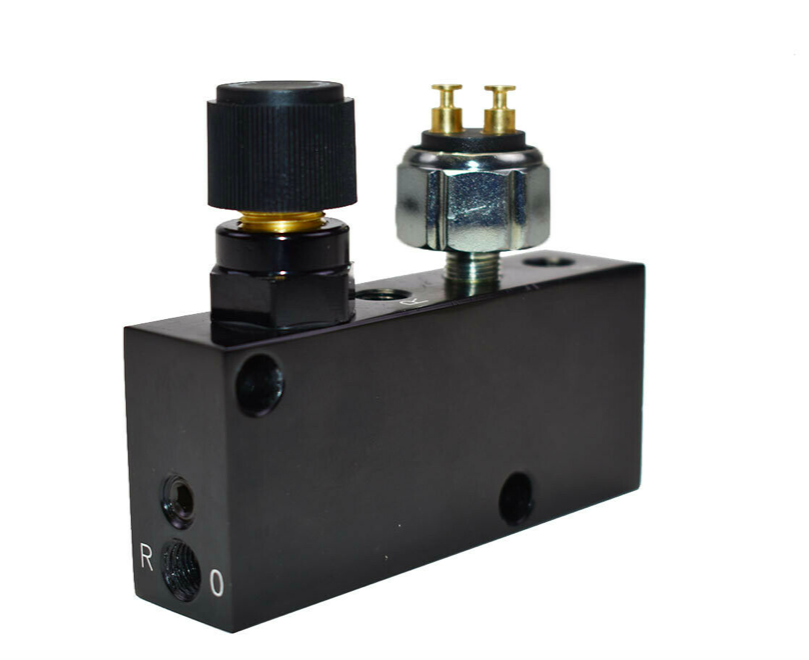

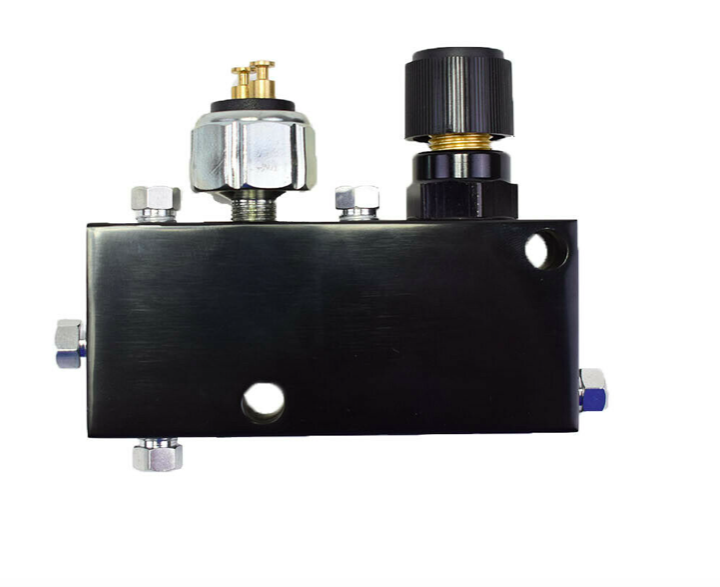

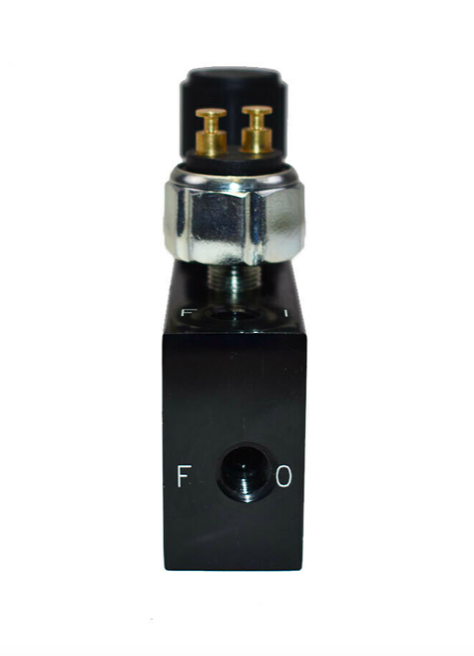

Universal Adjustable Brake Proportioning Valve Block with Mounting Bracket for Disc/Drum Applications

 Adjustable Proportioning Valve Distribution Block with mounting bracket, ( Universal fit , "Prop Block")

Disc/disc or  disc/ Drum Brake

Ideal for street rods

This adjustable proportioning block allows you to run lines from the master cylinder to the block and then to the appropriate wheels.

What is neat about it is that it also contains the proportioning valve and brake light switch.

This dramatically reduces the amount of fittings needed and potential leaks.

The adjustable proportioning valve regulates rear brake pressure, helping to maintain correct brake bias between front and rear brakes.

It is designed for dual bowl master cylinders.

The distribution block connects to the master cylinder and distributes brake fluid to all four wheels. An easy to turn handle with directional arrows makes it simple to either increase or decrease rear brake pressure.

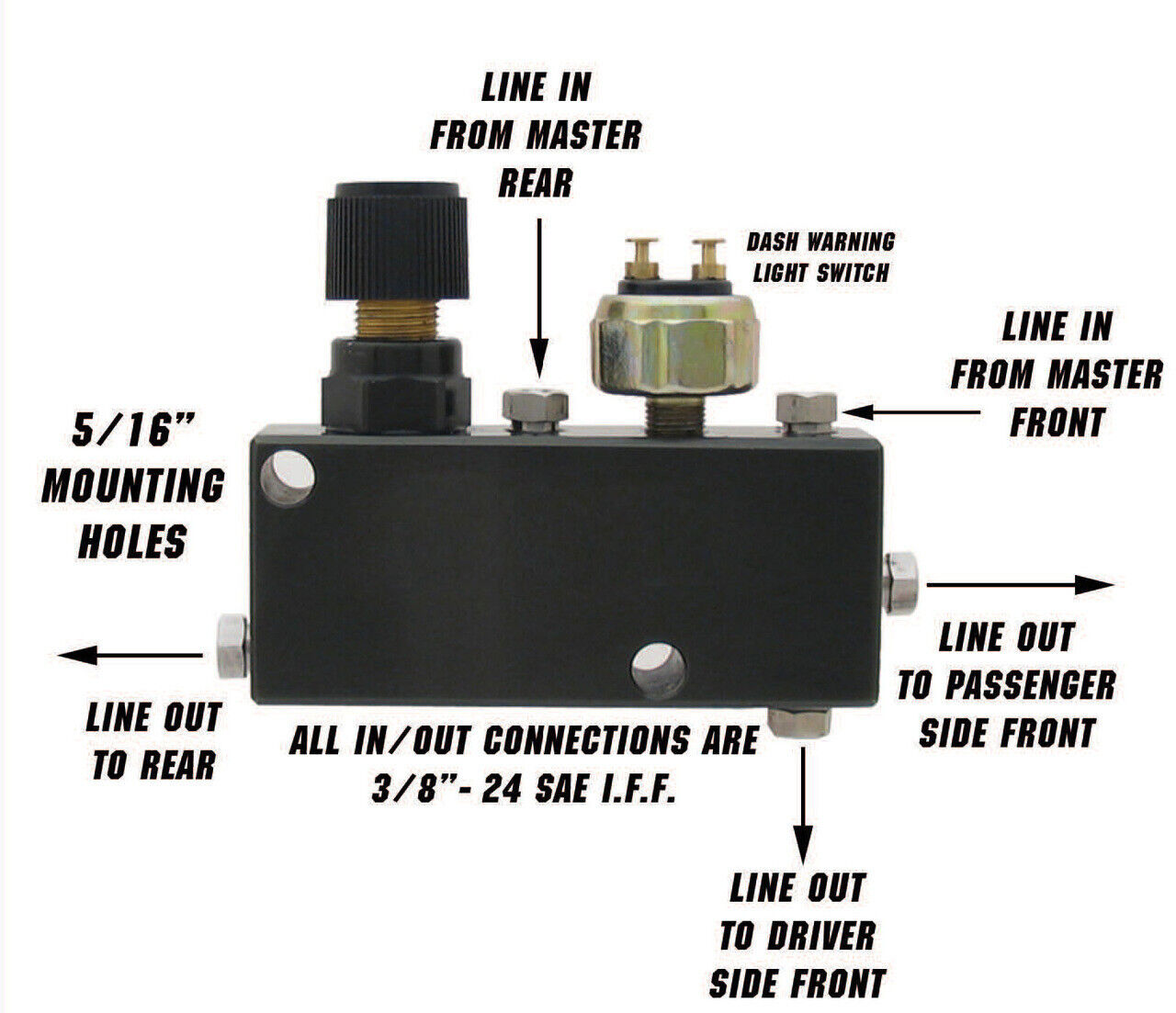

The block accepts 3/16" brake lines and the inlets and outlets on this unit are 3/8"-24 inverted flare females.

It has two inlets from the master cylinder, two outlets to the front brakes and one outlet to the rear brakes. I

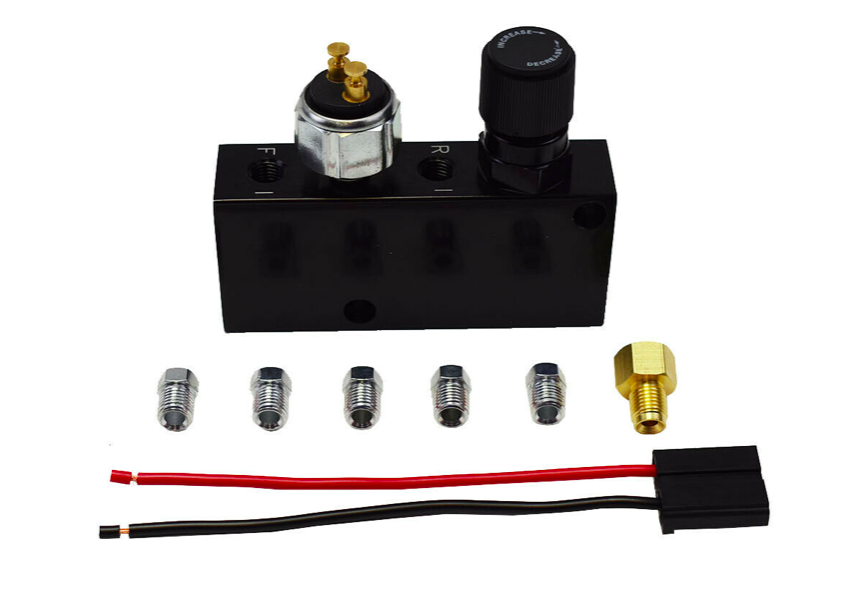

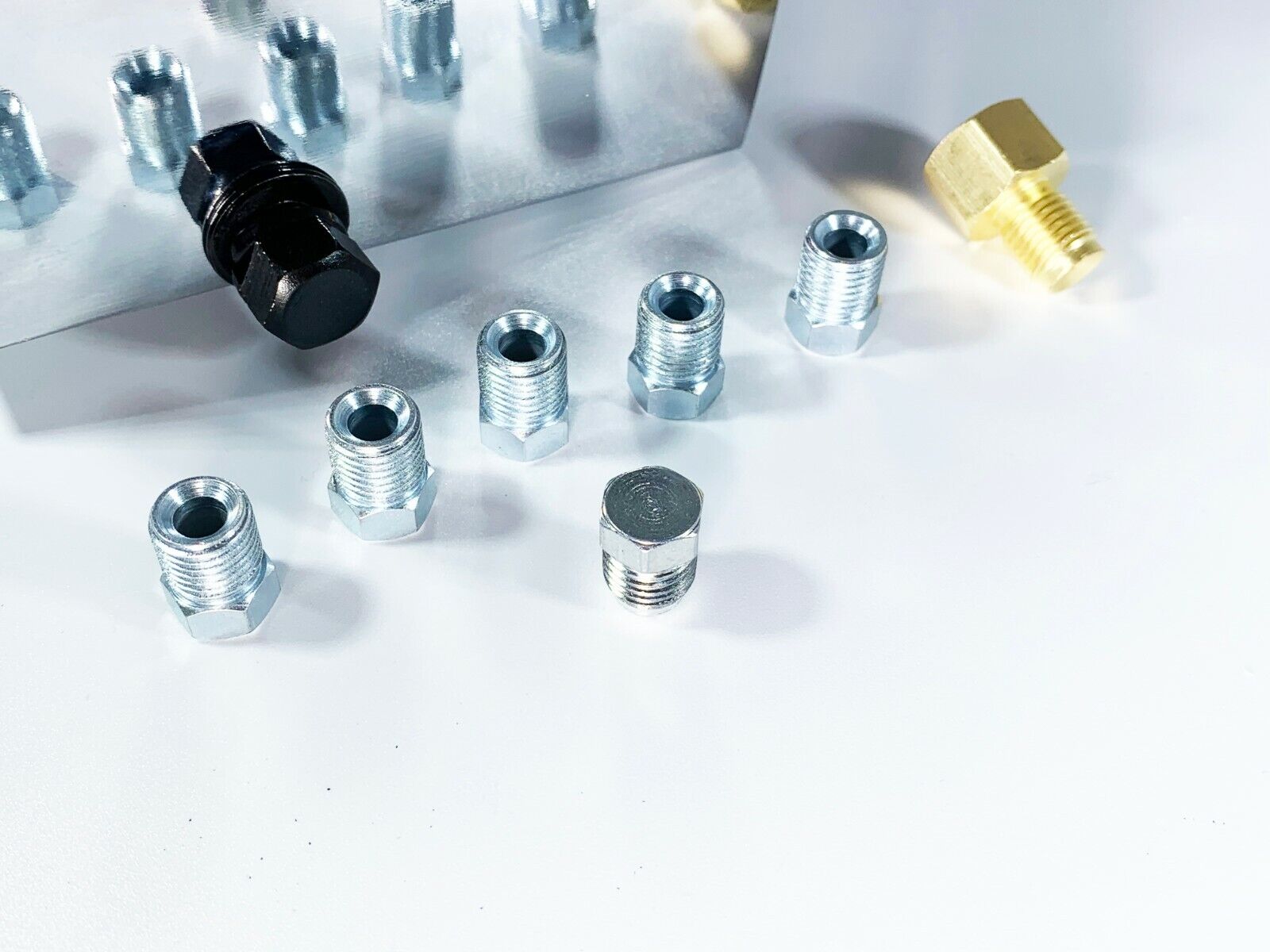

t includes five  3/16" fittings and wiring pigtail for rear brake light switch.

Mounts to any convenient location.

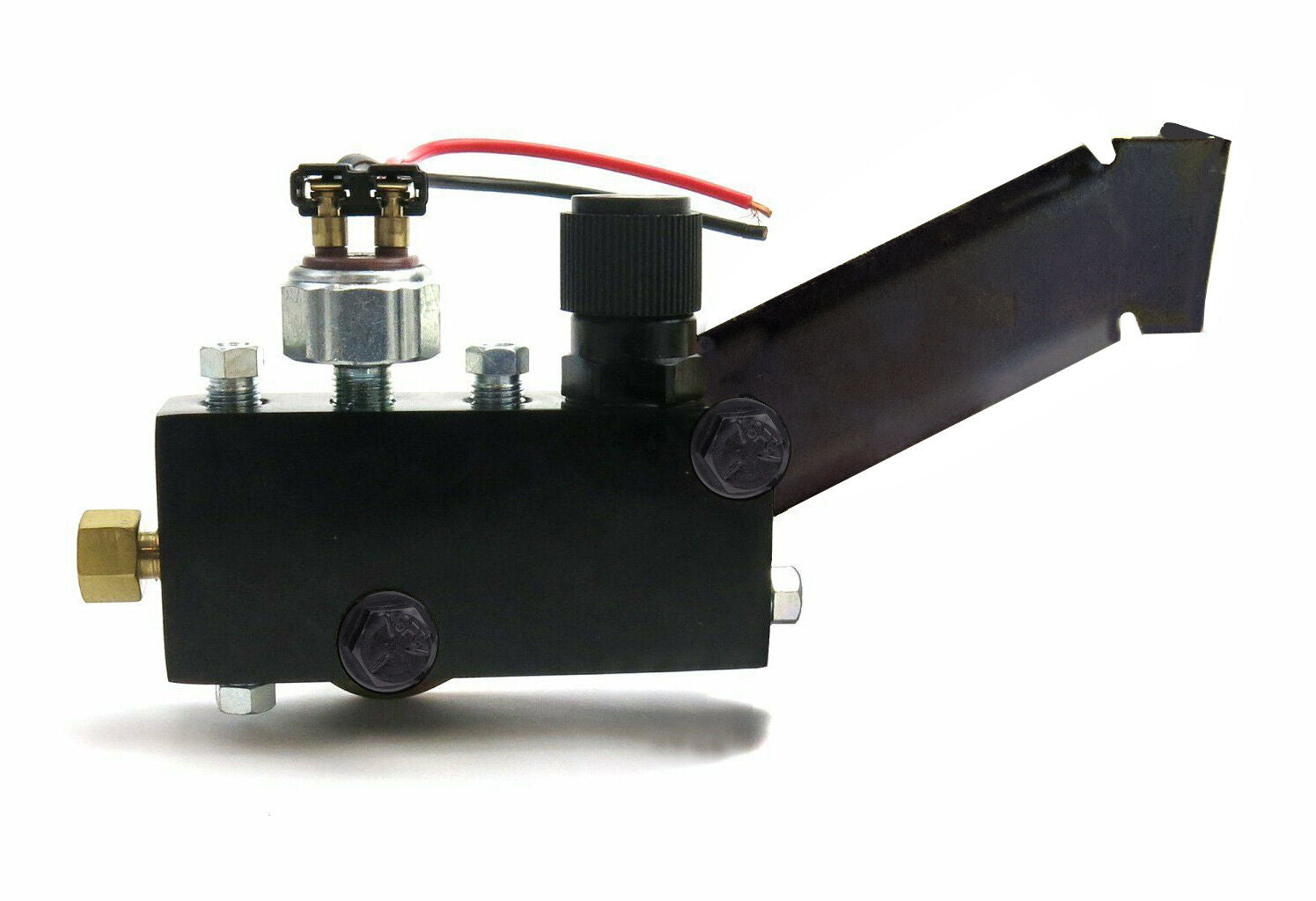

Black bolts for mounting

Comes with Plug to seal extra front port when not used

This is not a direct factory replacement for original blocks.    Some line modifications may be necessary.

We now carry Master  cylinder line kits that are bent to work with this block

brake line sets that fit this valve set up for:

1955-57 chevy

1958-64 Chevrolet - impala

1965-66 Chevrolet - impala

1964-72 Chevelle, GTO, 442, GS

1967-69 Camaro / Firebird

1964-67 Chevrolet Nova

1968-74 Nova, Ventura, Omega, Apollo

1967-72 Chevy and GMC trucks

1960-66 Chevy and GMC Trucks
