Force 10 Brakes
GM Prop Valve Kit Disc-Disc, PREMIUM kit & pig tail ( PV4) SPECIAL BUY
GM Prop Valve Kit Disc-Disc, PREMIUM kit & pig tail ( PV4) SPECIAL BUY
SKU: FPV4A
Couldn't load pickup availability
Share

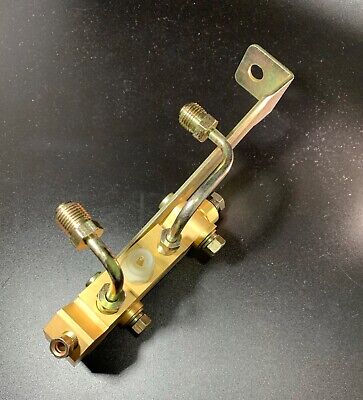

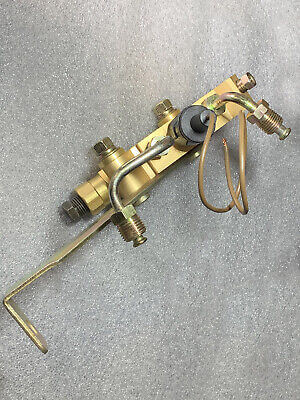

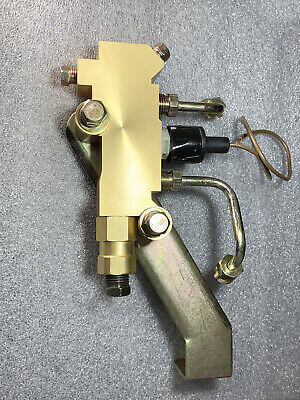

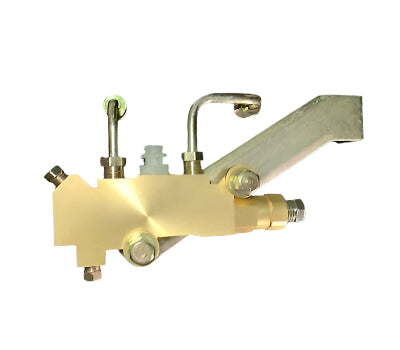

GM-Style Brass Proportioning Valve & Distribution Block with Bracket – Disc/Disc Applications
Upgrade Your Braking System for Optimal Performance & Safety
Enhance your brake system's performance with this brand-new brass proportioning valve and side bracket mounting kit, designed for disc/disc applications. This universal GM-style valve is a must-have when upgrading from drum to disc brakes, ensuring proper brake force distribution and safety monitoring.
Key Features & Benefits:
✔ Proportioning Function – Prevents rear wheel lockup by reducing brake pressure to the rear as the car leans forward under braking.
✔ System Failure Switch – Built-in warning switch alerts you if half of your braking system fails, ensuring safety and quick troubleshooting.
✔ Universal GM Compatibility – Works with Chevy, Buick, Oldsmobile, Cadillac, Pontiac, and GM trucks equipped with a GM-style master cylinder.
✔ Side Bracket Mounting Kit Included – Allows easy installation on the left (driver’s side) of the master cylinder. Compatible with both aftermarket and stock brake boosters, including:
- 7", 8", 9", 10", and 11" booster sizes.

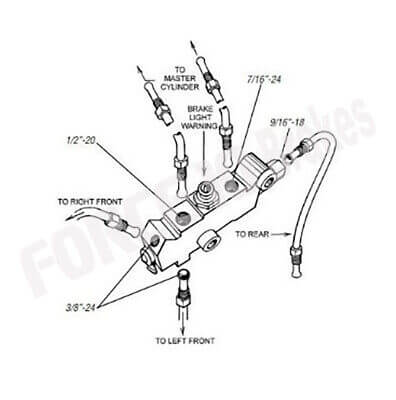

✔ Pre-Bent Hard Lines for Easy Installation – Includes two hard lines to connect the master cylinder (with 1/2" & 9/16" ports) to the proportioning valve.

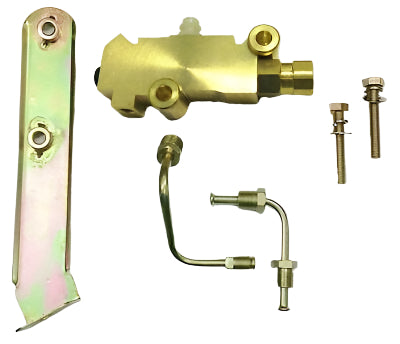

What’s Included?
✅ Brass Proportioning Valve (Disc/Disc setup)
✅ Left-Side Mounting Bracket
✅ Pre-bent hard lines (for GM-style master cylinder connections)
Perfect for Disc Brake Conversions!
This GM-style proportioning valve is an essential upgrade when converting from drum to disc brakes, ensuring balanced braking performance and safety.
🔹 Looking for Disc/Drum Proportioning Valves or PV2/PV4 Blocks?
Check out our store for a full selection of proportioning valves, pigtail connectors, bleeder centering tools, and more!
📦 In Stock & Ready to Ship – Order Now!
🔧 Upgrade your braking system today for improved safety, control, and reliability! 🚗💨
