Upgrading Your 64-66 Mustang: A Step-by-Step Guide to Switching from a Single Bowl to a Dual Bowl Master Cylinder

Introduction

Upgrading the master cylinder of your 1964-1966 Mustang is a crucial step towards enhancing both safety and performance. When it comes to classic cars, the importance of reliable braking systems cannot be overstated. The original single bowl master cylinder, while functional in its time, presents several risks that modern upgrades can alleviate.

Understanding Master Cylinder Functionality

The master cylinder is a vital component of your vehicle's braking system, serving as the heart of hydraulic pressure. In classic Mustangs, the original single bowl design served the purpose but lacks redundancy—if it fails, so does your braking capability. Upgrading to a dual bowl master cylinder not only enhances reliability but also provides added safety by ensuring that if one side of the braking system fails, the other can still operate effectively.

Safety First: Why Dual Bowl Matters

For any classic car enthusiast, the safety of both the driver and passengers is paramount. The transition from a single bowl to a dual bowl system significantly increases braking safety. The dual bowl configuration separates front and rear brake lines, allowing for better control and balance during hard stops. This advancement is particularly crucial for those who enjoy driving their Mustangs on the road or at track events, where superior braking performance is vital.

Performance Upgrades: Making the Switch

Not only does upgrading the master cylinder improve safety, but it also optimizes the overall performance of your Mustang. A dual bowl system provides improved modulation and feel, resulting in a more responsive braking experience. This upgrade is especially pertinent for drivers who have modified their vehicles for increased horsepower, as enhanced stopping power becomes essential to match performance gains.

A Worthwhile Investment

Investing time in this upgrade is just that—an investment. While there may be an initial cost and labor involved in switching to a dual bowl master cylinder, the long-term benefits in safety and performance are undeniable. Your classic Mustang deserves modern enhancements that honor its legacy while keeping you safe on the road.

In the following sections, we will guide you through the steps necessary for this upgrade, ensuring that you not only have the knowledge but also the confidence to enhance your Mustang effectively. Let's dive into the details of this essential upgrade!

Understanding the Master Cylinder

The master cylinder is a crucial component of any vehicle’s braking system, responsible for converting the force from the brake pedal into hydraulic pressure. This pressure initiates the braking action, allowing your car to slow down or stop. As you progress through this upgrade on your 64-66 Mustang, understanding the nuances between different master cylinder types will ensure you make informed decisions regarding safety and performance.

Function of the Master Cylinder

At its core, the master cylinder operates on a simple hydraulic principle. When you press the brake pedal, a piston inside the master cylinder compresses the brake fluid. This action generates hydraulic pressure, which travels through the brake lines to engage the calipers or wheel cylinders at each wheel. A properly functioning master cylinder is essential for effective braking performance, as it directly affects both the responsiveness and reliability of the brake system.

Single Bowl vs. Dual Bowl Designs

Master cylinders typically come in two primary designs: single bowl and dual bowl. Below is a detailed comparison of the two:

As illustrated, the single bowl master cylinder operates with a single reservoir that supplies brake fluid to the entire braking system. In the event of a leak or malfunction, this can render the entire system inoperable, posing significant safety risks. Conversely, the dual bowl master cylinder features two separate reservoirs—one for the front brakes and one for the rear—allowing for greater safety and improved braking performance. Should one circuit fail, the other typically remains operational, which can be a lifesaver in emergency situations.

Impact on Safety and Braking Performance

Upgrading to a dual bowl master cylinder can significantly enhance your 64-66 Mustang's braking performance and safety. The redundancy offered by the dual system not only builds confidence on the road but also promotes more even brake wear and improved vehicle control. In high-performance situations or during sudden stops, the capabilities of a dual bowl system can greatly reduce stopping distances and enhance vehicle stability.

In conclusion, the master cylinder plays an integral role in your Mustang’s braking system. By understanding the differences between single and dual bowl designs, you’ll be better equipped to make decisions that enhance both your vehicle's performance and safety. As you consider this upgrade, reflect on how these components influence your driving experience and the overall enjoyment of your classic Mustang.

Benefits of Upgrading to a Dual Bowl Master Cylinder

In the quest for a smoother and safer driving experience in your classic Mustang, one of the most impactful updates you can make is upgrading to a dual bowl master cylinder. This enhancement offers a plethora of advantages that go beyond merely improving your car's aesthetic. Let's explore the noteworthy benefits that come with this vital upgrade, ensuring that your muscle car not only performs well but also prioritizes driver safety.

Improved Safety Through Dual Circuit Braking

The most significant advantage of the dual bowl master cylinder configuration is the enhanced safety it provides through dual circuit braking. This system operates on two separate circuits, which means that if one circuit fails, the other remains operational, allowing you to retain braking power. This is a critical improvement over the traditional single bowl master cylinder, where failure can lead to complete loss of brakes. Key safety benefits include:

• Enhanced reliability under varying conditions.
• Increased confidence knowing that a redundancy is built into your braking system.
• Reduction in the likelihood of brake failure during emergencies.

Better Brake Balance

Another significant advantage of installing a dual bowl master cylinder is the improved brake balance it provides. The system allows for a more even distribution of brake fluid pressure to each wheel, which can result in a more cohesive braking response. Benefits of better brake balance include:

• Reduced likelihood of skidding or loss of control during hard stops.
• Enhanced performance in various braking situations, improving overall driving dynamics.
• More predictable handling and feedback, allowing for precise maneuvering.

Enhanced Overall Braking Performance

Finally, the shift to a dual bowl master cylinder translates directly to enhanced overall braking performance. With modern components integrated into the dual circuit, you will experience:

• Responsive braking with less travel required at the brake pedal.
• Improved heat dissipation, leading to consistent braking even during long drives.
• The ability to fine-tune brake characteristics based on your specific driving style and needs.

Upgrading to a dual bowl master cylinder is not merely a modification; it is an investment in safety and performance that transforms the driving experience of your 64-66 Mustang. This upgrade brings peace of mind and the assurance that you can handle the road's demands with confidence. So, if you're looking to boost your classic car's capabilities, transitioning to a dual bowl master cylinder should be at the top of your list.

Tools and Materials Needed

To successfully complete the upgrade from a single bowl to a dual bowl master cylinder in your 64-66 Mustang, being well-prepared with the right tools and materials is crucial. This ensures the process goes smoothly and enhances your overall experience as you enhance your classic vehicle’s braking system. Below is a comprehensive list that details all the essential items you will need throughout this upgrade journey.

Essential Tools

Begin your project by gathering the key tools necessary for the upgrade. Here’s a breakdown:

• Wrenches: A combination of metric and standard wrenches will be needed to loosen and remove the existing master cylinder. Specifically, a 1/2-inch wrench is critical for securing connections.
• Sockets: A socket set, including a 9/16-inch socket, is also important to reach fasteners in tight spaces.
• Torque Wrench: To ensure proper installation, a torque wrench is necessary for tightening bolts according to manufacturer specifications.
• Pliers: Needle-nose pliers will be useful for maneuvering brake hoses and clips while maintaining a good grip.

Replacement Parts

When it comes to the replacement parts, selecting high-quality components is essential for safety and performance. Here’s what you’ll need:

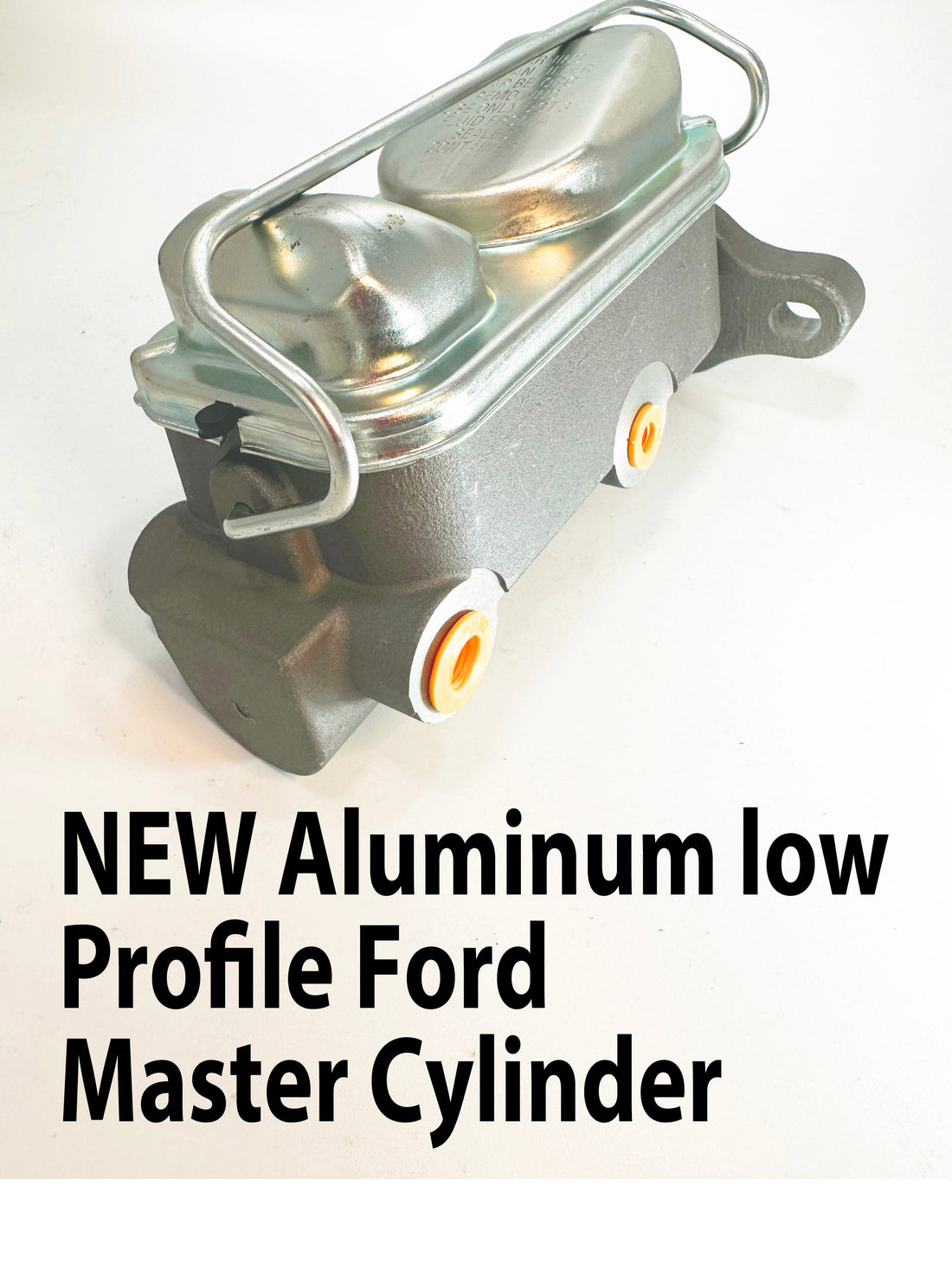

• Dual Bowl Master Cylinder: Ensure you choose a master cylinder that fits your Mustang model, typically with the necessary bracketry.
• Brake Lines: Depending on your setup, new brake lines may be required to connect to the new master cylinder effectively.
• Banjo Bolts and Gaskets: These are vital for securing the brake lines to the master cylinder and preventing leaks.
• Brake Fluid: Opt for high-performance brake fluid, such as DOT 3 or DOT 4, which is specifically designed for vintage vehicles to maintain proper braking performance.

Safety Equipment

Safety should never be compromised when working on any automotive project. Equip yourself with these essentials:

• Safety Glasses: Protect your eyes from any debris or fluid that may splash while you work.
• Gloves: Consider using nitrile gloves to protect your hands from brake fluid and other chemicals during the installation.
• Rags: Keep some absorbent rags handy to clean up any spills and ensure a safe working environment.

By assembling these tools and materials beforehand, you can tackle the upgrade process with confidence. Each item on this list plays a significant role, ensuring that your transition to a dual bowl master cylinder runs as smoothly as possible, enhancing both the reliability and safety of your Mustang’s braking system.

Step-by-Step Installation Process

1. Gather Your Tools and Materials

Before diving into the installation of your new dual bowl master cylinder, it's essential to gather all necessary tools and materials. Having everything on hand will streamline the installation process:

• Tools: Wrenches, screwdrivers (both flat and Phillips), brake line wrenches, and a torque wrench.
• Materials: New dual bowl master cylinder, brake fluid, brake line fittings, and a replacement gasket (if applicable).

Additionally, consider wearing safety glasses and gloves to protect yourself during the installation.

2. Disconnect the Battery

For safety reasons, always start your installation process by disconnecting the vehicle's battery. This step prevents any electrical issues or short circuits while you work on the brake system. It’s a simple yet crucial step to keep yourself and your Mustang safe.

3. Remove the Old Master Cylinder

Now it's time to remove the old single bowl master cylinder. Follow these sub-steps for a smooth removal:

• Locate the master cylinder on your Mustang and identify the brake line connections.
• Using a brake line wrench, carefully loosen and disconnect the brake lines. Be prepared with a catch pan as some brake fluid may spill.
• Remove the mounting bolts attaching the master cylinder to the booster. Keep these bolts as they may be required for the new installation.
• Once disconnected, gently lift the old master cylinder away from the vehicle.

Make sure to properly dispose of the old brake fluid in accordance with local regulations.

4. Prepare the New Master Cylinder

Before installing your new dual bowl master cylinder, you need to prepare it:

• Inspect the new cylinder for any damage or debris.
• Install the replacement gasket if required, ensuring a snug fit.
• Fill the new cylinder with fresh brake fluid to minimize air entering the lines during installation.

Preparing the master cylinder properly can help facilitate easier bleeding later on.

5. Install the New Master Cylinder

With the new master cylinder prepared, it's time to install it:

• Position the master cylinder over the mounting point and align it with the previously installed bolts.
• Attach the mounting bolts securely, following the manufacturer's specified torque settings to prevent any leaks.
• Reconnect the brake lines, ensuring they are tightened appropriately without over-torquing.

6. Bleed the Brake System

After installation, bleeding the brakes is crucial to ensure a responsive braking system. Follow these steps:

• Start at the longest brake line and work toward the master cylinder to remove air from the system.
• Have a helper pump the brake pedal while you open and close the bleeder valve on each brake caliper.
• Repeat this process until there are no air bubbles present in the brake fluid.

Checking and topping off your brake fluid level is essential during this process to prevent damage to the braking system.

7. Reconnect the Battery and Test

Once the bleeding process is complete, it’s time to reconnect the battery. Here’s how to proceed:

• Reconnect the battery terminals and ensure a secure connection.
• Before taking your Mustang for a drive, pump the brake pedal a few times, checking for firmness.
• Finally, take your vehicle for a short test drive to make sure the new system is functioning properly and there are no leaks.

Congratulations! You’ve successfully upgraded your Mustang’s braking system to a dual bowl master cylinder, enhancing both safety and performance.

Bleeding the Brakes

After successfully installing the dual bowl master cylinder on your classic Mustang, the next essential step is bleeding the brakes. This process ensures that any air trapped in the brake lines is removed, which is crucial for achieving optimal braking performance. Air in the brake lines can lead to a spongy brake pedal, diminishing the responsiveness and effectiveness of your braking system.

Why Bleeding Brakes is Crucial

When your brake system is opened for maintenance, such as changing the master cylinder, it is common for air to infiltrate the brake lines. If air is not purged, the hydraulic pressure required for effective braking can be compromised, leading to brake fade or a complete loss of braking power. A well-bleed system guarantees that the brakes engage smoothly and enhances your driving safety.

"Your classic Mustang's performance is only as good as its brakes. Ensure your system is free of air for maximum responsiveness!"

The Bleeding Process - Step by Step

Follow these steps to properly bleed the brakes:

1. Gather Your Tools: Before starting, make sure you have brake fluid, a wrench or brake bleeder tool, a container for catching old brake fluid, and a helper if possible.
2. Start from the Farthest Wheel: Begin the bleeding process from the wheel farthest from the master cylinder, usually the passenger-side rear brake. This ensures that you effectively remove air bubbles from the entire system.
3. Attach the Bleeder Tool: Locate the brake bleeder valve on the brake caliper or wheel cylinder and attach your bleeding tool. If you’re using a hose, submerge the other end in a container to catch the fluid.
4. Open the Bleeder Valve: Have your helper pump the brake pedal several times until they feel resistance, then hold the pedal down. Slowly open the bleeder valve to allow the fluid (and air) to escape. Close the valve before your helper releases the brake pedal to avoid drawing air back in.
5. Check Brake Fluid Levels: Continuously monitor the brake fluid reservoir during the process to prevent it from running dry; otherwise, more air will enter the system.
6. Repeat: Repeat the process at each wheel, following the correct sequence (Passenger rear, Driver rear, Passenger front, Driver front).
7. Final Check: Once all four wheels have been bled, perform a final check on the brake fluid level. Test the brake pedal for firmness to ensure all air has been eliminated.

Key Takeaways

By systematically bleeding your brakes after the installation of your new dual bowl master cylinder, you're ensuring that your Mustang’s braking system is functioning at its best. Remember, a well-maintained braking system not only enhances performance but also significantly increases safety on the road. Don't rush through this step; taking the time to bleed your brakes properly could mean the difference between a thrilling ride and a dangerous situation.

Have you recently upgraded your Mustang’s braking system? Share your experience or ask questions in the comments below! We'd love to hear about your journey!

Troubleshooting Common Issues

Brake Fluid Leaks

After upgrading to a dual bowl master cylinder, one of the most common issues you may encounter is brake fluid leaks. These leaks can occur at the junctions of hoses and fittings, as well as the master cylinder itself. It's crucial to address these leaks promptly, as even a small leak can lead to a significant decrease in brake performance.

To troubleshoot brake fluid leaks, follow these steps:

1. Inspect all connections and fittings for signs of wear or improper sealing.
2. Ensure that the brake line connections are tightened to the manufacturer’s specifications.
3. Look for any evidence of fluid around the master cylinder; if you see fluid, it may indicate a faulty gasket or improper installation.
4. If the leak persists after tightening and inspection, consider replacing the gaskets or O-rings in the affected areas.

For your reference, here's a quick comparison table of common leak points and possible solutions:

Spongy Brakes

Experiencing spongy brakes is another common issue that may arise after the installation. A spongy feeling in the brake pedal often indicates air in the braking system or insufficient fluid pressure. This problem is not only frustrating but can also compromise safety, making it essential to resolve quickly.

Here’s how to tackle spongy brakes:

1. Begin by checking the brake fluid level. If it's low, top it off with the recommended type.
2. Bleed the brakes to remove any trapped air. This can be done at each wheel, starting from the wheel furthest from the master cylinder.
3. Examine the brake lines for any signs of wear or damage that could cause air entry into the system.
4. If the sponginess persists, consider reassessing your master cylinder installation, ensuring that it is properly aligned and securely mounted.

Inconsistent Brake Performance

If you notice inconsistent brake performance, such as one wheel braking harder than the others, this may be a sign of an imbalance in your braking system. Such issues typically arise from improper adjustment of the brake lines after installation.

To rectify this issue, check the following:

1. Ensure that both front and rear brake lines are secured and that the distances to the calipers are equal.
2. Consider adjusting the proportioning valve if your vehicle is equipped with one to ensure balanced braking.
3. Lastly, verify if the brake pads are worn unevenly, which could cause fluctuating brake pressure. Replace any unevenly worn parts as needed.

By addressing these common issues with your dual bowl master cylinder installation, you can enhance your braking system's reliability and ensure that your upgraded 64-66 Mustang performs optimally. If problems persist, it may be wise to consult a brake specialist for a comprehensive inspection.
